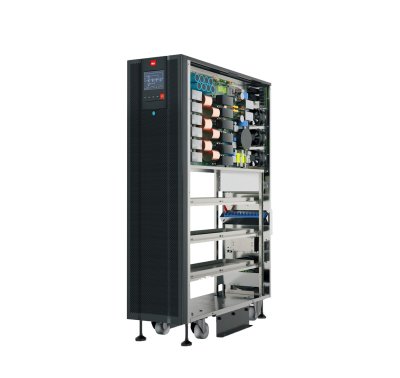

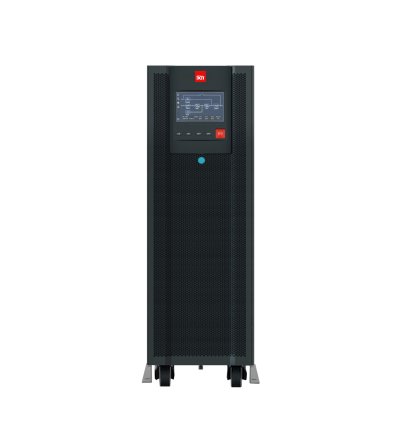

EXTRA POWER UPS 10-40KVA

Key Technical Features -  EXTRA POWER UPS (10-40KVA)

• True Online Double Conversion: Delivers clean, stable power with full protection against surges, sags, and outages
• Parallel Expansion Support: Scalable up to 4-6 units for enhanced reliability

• High Efficiency: AC/AC efficiency up to 96% for lower energy cost

• Selectable Power Factor (0.9 or 1.0): Supports full-rated load with minimal loss

• Wide Input Voltage Range: 80-280V (L-N), 138-485V (L-L) ideal for unstable grids

• 3-Level IGBT Technology: Improves power quality, reduces grid noise

• Generator Compatible: Works seamlessly with backup power sources

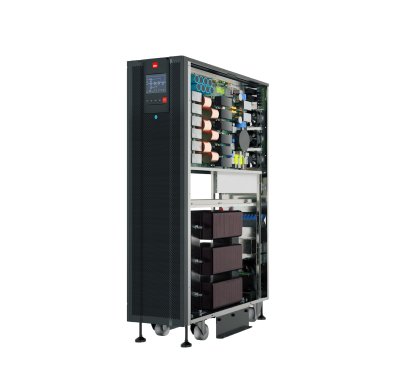

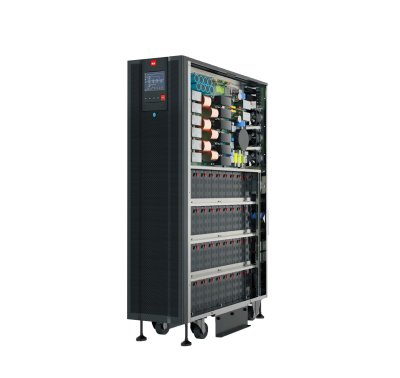

• Common Battery Bank Support: Configurable with 16-80 batteries

• ECO Mode & EPO Function: Energy-saving with emergency power-off capability

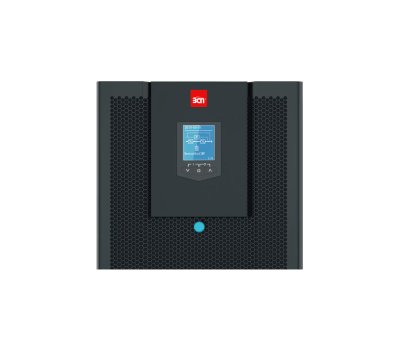

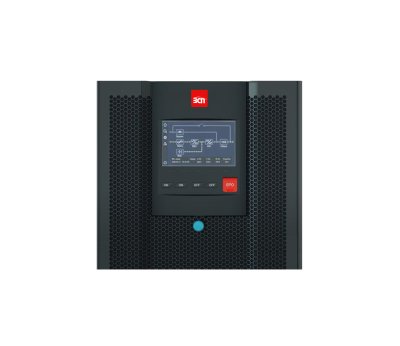

• Color LCD Display: 4.3" or 7" (optional) for real-time UPS status monitoring

• Comprehensive Protection: Against short circuit, overload, overheating, battery fault

• Versatile Communication: RS485, EPO, Dry-Contact, optional RS232 & SNMP

• Certified: TIS 1291-2553 (1), TIS 1291-2553 (2), TIS 1291-2555 (3), ISO 9001, ISO 14001, OHSAS 18001, CE

Technical Specifications:

• Power Ratings:

  • 10KVA (9-10KW), 20KVA (18-20KW), 30KVA (27-30KW), 40KVA (36-40KW)

• Input Voltage: 80-280V (L-N) / 138-485V (L-L)

• Output Voltage: 220/230/240V ±1% (L-N) / 380/400/415V ±1% (L-L)

• THD: ≤2% (linear load), ≤4% (non-linear load)

• Battery Voltage: ±96Vdc - ±240Vdc (16-80 batteries), max charging current 20A

• Noise Level: <50-55dB @ 1 meter

Recommended Applications:

• Servers and data centers
• Network and telecom systems

• Medical and laboratory equipment

• Industrial environments with heavy machinery and critical operations
