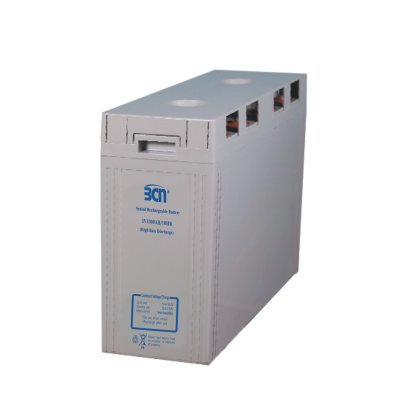

BCN(G)-2V1000AH

Key Features - G2V1000AH Gel Battery

• Battery Type: Sealed Lead Acid (SLA) Gel, low maintenance and safe design.

• Nominal Voltage: 2V

• Rated Capacity:

  • 1000Ah @ 10-hour rate

  • 850Ah @ 5-hour rate

  • 590Ah @ 1-hour rate

• Dimensions:

  • Total Height with Terminals: 365 mm (14.38 in)

  • Height: 357 mm (14.06 in)

  • Length: 475 mm (18.7 in)

  • Width: 175 mm (6.89 in)

• Weight: Approx. 57.0 kg (125.4 lbs)

• Max. Discharge Current: 7000A (5 seconds @ 25°C)

• Internal Resistance: 0.3 mΩ (fully charged @ 25°C)

• Capacity vs Temperature:

• 40°C: 102%

  • 25°C: 100%

  • 0°C: 85%

  • -15°C: 65%

• Charging Voltage:

  • Float: 2.25V @ 25°C (temp. comp. -3mV/°C)

  • Equalization: 2.35V @ 25°C (temp. comp. -4mV/°C)

• Initial Charging Current: Less than 200A

• Certified Standards:

  • ISO 9001

  • ISO 14001

  • OHSAS 18001

  • CE

• Emergency Light Systems

• Fire & Security Systems

• Communication Power Supply

• Uninterruptible Power Supply (UPS)

• Railway Signal Systems

• Electro-medical Devices

• Car & Starting Applications

Download Catalog : G2V1000AH
