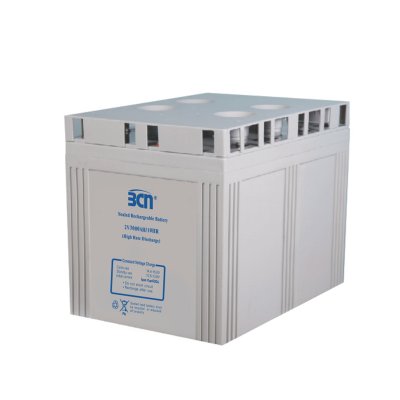

BCN(G)-2V3000AH

Key Features - G2V3000AH Gel Battery

• Battery Type: Sealed Lead Acid (SLA) Gel, maintenance-free design.

• Nominal Voltage: 2V

• Rated Capacity:

  • 3000Ah @ 10-hour rate

  • 2550Ah @ 5-hour rate

  • 1680Ah @ 1-hour rate

• Dimensions:

  • Total Height with Terminals: 382 mm (15.06 in)

  • Height: 341 mm (13.44 in)

  • Length: 712 mm (28.03 in)

  • Width: 353 mm (13.90 in)

• Weight: Approx. 174.0 kg (382.8 lbs)

• Max. Discharge Current: 15000A (5 sec @ 25°C)

• Internal Resistance: 0.18 mΩ (fully charged @ 25°C)

• Capacity vs Temperature:

  • 40°C: 102%  25°C: 100%  0°C: 85%  -15°C: 65%

• Self-Discharge & Capacity Retention:
  • 91% after 3 months
  • 81% after 6 months
  • 60% after 12 months

• Charging Voltage:

  • Float: 2.25V @ 25°C (-3mV/°C)

  • Equalization: 2.35V @ 25°C (-4mV/°C)

• Initial Charging Current: Less than 600A

• Certified Standards:

  • ISO 9001, ISO 14001, OHSAS 18001, CE

• Emergency Light Systems

• Fire & Security Systems

• Communication Power Supply

• Uninterruptible Power Supply (UPS)

• Railway Signal Systems

• Electro-medical Devices

• Car & Starting Applications

Download Catalog : G2V3000AH
