Battery UPS 12V 12AH | BCN Battery

Engineered for Peak Performance

• Rock-Solid Power Backup: Delivers a true 12Ah rated capacity (at a 20-hour rate), ensuring your electronics stay powered up safely during unexpected blackouts.
• High-Impact Peak Discharge: Capable of unleashing a Maximum Discharge Current of 180A for 5 seconds. This ensures a lightning-fast, seamless transfer of power the exact millisecond your main grid fails.
• Ultra-Low Internal Resistance: Engineered with a remarkably low resistance of just 17mΩ, allowing for highly efficient power delivery, minimal internal heat buildup, and fast recharge rates.
• Outstanding Cycle Life: Built to endure everyday real-world usage, offering up to 500 cycles at 50% DOD (Depth of Discharge) and 300 cycles at 100% DOD for long-lasting dependable service.
• Severe Temperature Resilience: Operates smoothly across a wide temperature range from -10°C to 50°C, making it incredibly stable under harsh environmental conditions and heavy-duty office network racks.
• World-Class Certified Quality: Manufactured in a state-of-the-art facility backed by globally recognized standards: ISO 9001, ISO 14001, OHSAS 18001, and CE.

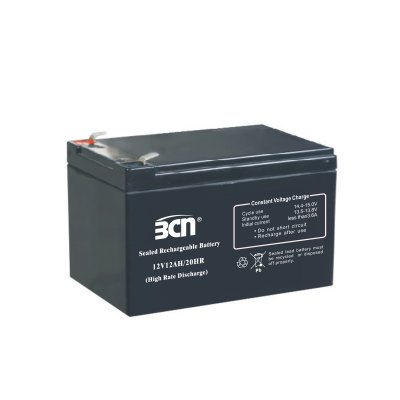

Key Features - BCN 12V 12AH SLA Battery

• Battery Type: Sealed Lead Acid (SLA), Maintenance-Free, VRLA type

• Nominal Voltage: 12V

• Rated Capacity:

  • 12Ah (at 20-hour rate)

• Dimensions:

  • Height: 100 mm  Length: 151 mm  Width: 98 mm

• Weight: Approx. 3.80 kg

• Max. Discharge Current: 180A (5 seconds)

• Internal Resistance: 17 mΩ

• Charging Voltage:

  • Float: 13.8V @ 25°C

  • Equalization: 14.4V @ 25°C

• Charging Method:

  • Initial Charging Current: < 3.6A

  • Constant Voltage Mode for Float Charging

• Operating Temperature: -10°C to 50°C

• Discharge Capability: Constant Current & Constant Power

• Cycle Life:

  • ~500 cycles at 50% DOD

  • ~300 cycles at 100% DOD

• Certified Standards:

  • ISO 9001, ISO 14001, OHSAS 18001, CE

Recommended Applications

• Emergency Light Systems

• Fire & Security Systems (CCTV, alarm systems)

• Communication Power Supply

• Uninterruptible Power Supply (UPS)

• Railway Signal Systems

• Electro-medical Devices

• Car & Starting Applications

Download Catalog : BCN BATTERY 12V 12AH
