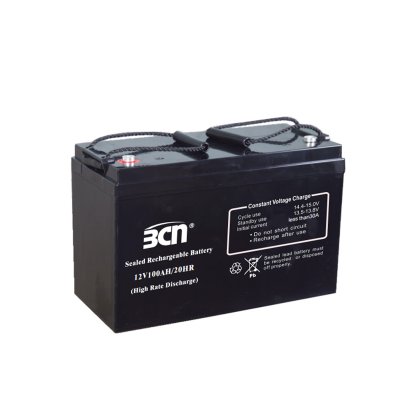

BCN12V 100Ah

Key Features - BCN 12V 100AH SLA Battery

• Model Variants:
  • Standard Model (27.5 kg): For general backup applications requiring stable performance
  • Heavy Duty Model (30.5 kg): Reinforced for extended, demanding backup use
• Battery Type: Sealed Lead Acid (SLA), Maintenance-Free, Valve-Regulated Lead-Acid (VRLA)
• Nominal Voltage: 12V
• Rated Capacity:
  • 100Ah @ 20-hour rate
  • 92Ah @ 10-hour rate
  • 80Ah @ 5-hour rate
  • 60Ah @ 1-hour rate
  • 41Ah @ 15-minute rate
• Dimensions:
  • Standard Model: 329 × 172 × 220 mm (L × W × H with terminals)
  • Heavy Duty Model: 407 × 174 × 236 mm (L × W × H with terminals)
• Max. Discharge Current: 800A (5 seconds)
• Internal Resistance: 5 mΩ
• Charging Voltage:
  • Float: 13.5V - 13.8V @ 25°C
  • Equalization: 14.4V - 14.7V @ 25°C
  • Temp. Compensation
    • Floating: -18mV/°C
    • Equalization: -24mV/°
• Initial Charging Current: Less than 30A
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Certified Standards: ISO 9001, ISO 14001, OHSAS 18001, CE

Recommended Applications

• Uninterruptible Power Supply (UPS)
• Emergency Light Systems

• Fire & Security Systems
• Communication Systems

• Railway Signal Systems

• Electro-medical Devices

• DC Power Supply Systems

• Car & Other Starting Applications
