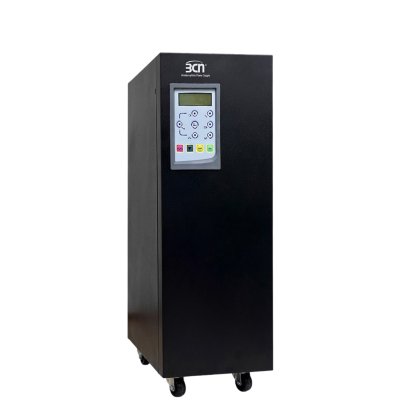

BCN GP801 1kVA Online UPS (1000VA/900W) Transformer-Based

Why Choose BCN GP801 1kVA 900W Online UPS?

The BCN GP801 1kVA / 1000VA Online UPS is engineered to deliver enterprise-grade power protection for mission-critical equipment. Designed for small offices, POS systems, CCTV networks, and server rooms, it offers maximum reliability under severe electrical conditions.

Highlight Features & Benefits:

1. True Online Double Conversion Technology: Provides absolute isolation and ultimate power protection for critical infrastructure against sags, surges, and blackouts.
2. Heavy-Duty Industrial Design (Transformer-Based): Equipped with a built-in isolation transformer to ensure high anti-interference, exceptional durability, and robust isolation from harsh grid environments.
3. High Efficiency Power Factor 0.9 (1000VA / 900W): Delivers 900W rated active power, maximizing energy efficiency and allowing you to safely connect more equipment without overload risks.
4. Clean Pure Sine Wave Output (≤3% THD): Guarantees a continuous, clean, and stable power supply with ultra-low Total Harmonic Distortion (THD) under linear loads, perfectly protecting sensitive electronic equipment.
5. Zero Transfer Time (0 ms AC-to-Battery Switchover): Features 0 ms instant backup switchover. In the event of a power outage, your servers and network systems continue running smoothly without resetting or data loss.
6. Generator Compatible & Wide Input Voltage Window: Seamlessly integrates with backup generator systems and accepts unstable input voltage, making it perfect for regions with fluctuating power grids.
7. Intelligent LCD Digital Monitoring Display: Offers real-time monitoring of essential metrics including input/output voltage, grid frequency, load capacity, battery status, and operating temperature.
8. Advanced Remote Smart Communication Ports: Equipped with a standard RS232 port, with optional support for RS485, SNMP card management, and Dry Contacts for remote IT network monitoring.
9. Smart Battery Management (ABM) & Auto-Charging: Maximizes battery lifespan with advanced charging algorithms. The system automatically charges the battery even when the UPS is in Off-Mode.
10. Scalable Backup Time & Parallel Capacity: Supports expandable external battery banks for extended runtime. Optional parallel N+X redundancy configurations are available subject to specific model requirements.

Technical Specifications

• Model: GP801
• Rated Capacity: 1000VA / 900W
• Output Power Factor: 0.9
• UPS Topology: True Online Double Conversion
• Construction: Transformer-Based
• Nominal Input: 220/230Vac
• Input Operating Range: 160–260Vac or 160–310Vac (with AVR as specified)
• Input Frequency: 50/60Hz ±5%
• Output Voltage: 220/230Vac ±1%
• Output Frequency: 50/60Hz ±0.5Hz
• Output: Single Phase + Ground
• Waveform: Pure Sine Wave
• Output THD: ≤3% (linear load)
• Transfer Time: 0 ms (AC/battery)
• Battery Type: Maintenance-Free Sealed Lead-Acid
• Battery Voltage: 48Vdc or 192Vdc, configuration-dependent
• Charger: 6A standard, 12A optional
• Recharge: Approximately 8–10 hours to 90%
• Interfaces: RS232 standard; RS485/SNMP/dry contact optional
• Operating Temperature: 0–40°C
• Humidity: 20–90% non-condensing
• Overload: 110–150% transfers to bypass after approx. 3 seconds
• Generator Compatible: Yes
• Extended Runtime: Battery/load dependent

Why Buy BCN UPS from BT Connect? Your Trusted Power Protection Partner

Choosing the right uninterruptible power supply (UPS) is only half the battle—choosing the right partner to supply, implement, and maintain it ensures your business remains 100% operational. When you purchase the BCN GP801 1kVA 900W Online UPS from BT Connect, you get more than just hardware; you secure long-term reliability and professional B2B support.

• When you partner with BT Connect, you are guaranteed authentic, brand-new, factory-certified BCN UPS systems. Avoid the risks of grey-market imports or substandard modifications. Our BCN GP800 series inventory comes straight from certified manufacturing lines with full tracking and verified industrial-grade components.

• We understand corporate and enterprise buying processes. BT Connect provides fast, transparent, and accurate commercial quotes tailored to your project requirements. Whether you need a single 1kVA unit for an office POS system or a bulk deployment across multiple network branches, our dedicated sales engineers streamline your procurement timeline.

• Don't guess your power load calculations. Our certified IT and electrical specialists analyze your specific equipment requirements—whether it is an enterprise server rack, an advanced CCTV matrix, or a medical workstation. We help you choose between standard models or expandable battery bank setups to perfectly match your target backup runtime.

• Every BCN UPS purchased through BT Connect is backed by an official, comprehensive product warranty. If technical issues arise, you won’t have to deal with automated bots. Our local technical support team is ready to assist with troubleshooting, battery replacements, and hardware maintenance, minimizing your business downtime.

• From safe transport of heavy industrial transformer-based UPS units to coordinated deliveries for multi-site commercial rollouts, BT Connect handles logistics with care. We ensure your critical power backup equipment arrives securely, on time, and ready for deployment
