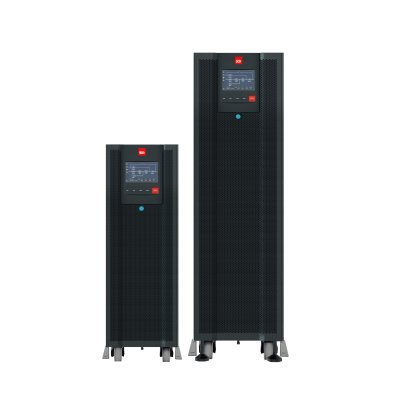

UPS 40kVA BCN EXTRA POWER MYRIA Industrial 3 Phase True Online UPS
Short Description
The BCN EXTRA POWER TOWER (MYRIA 40kVA) is a high-performance True Online Double Conversion UPS engineered to safeguard critical operations in industrial plants, medium data centers, server rooms, and production lines. Delivering up to 40,000VA / 36,000W (extendable to 40,000W with the PF 1.0 Option), this robust 3 Phase UPS features a versatile 3:3 and 3:1 phase configuration to seamlessly integrate into any corporate or industrial power infrastructure.
Brands: BCN
Wishlist
Compare
Key Features
Why choose the BCN 40kVA UPS over entry-level alternatives? It is engineered for long-term ROI, energy efficiency, and total system reliability:
- High Efficiency Up to 96%: Maximizes AC/AC operational efficiency up to 96%, significantly lowering electricity costs and minimizing thermal dissipation in server rooms.
- Advanced 3-Level IGBT & Dual DSP Control: Dual digital signal processing coupled with next-gen inverter technology guarantees an ultra-stable, clean sine wave output for sensitive electronics.
- Low Harmonic Distortion: Protects delicate machinery with an Input THDi <3% and Output THDv <1% (Linear Load), filtering out harmful electrical noise.
- Flexible Phase Configuration: Supports dual-mode setups, letting you configure the system as 3-Phase In / 3-Phase Out (3:3) or 3-Phase In / 1-Phase Out (3:1).
- Smart Battery Flex: Features adjustable battery voltage settings (±144 to ±240VDC) supporting internal and external battery racks, with a programmable charging current ranging from 1 to 20A.
- Maintenance Bypass & Parallel Scalability: An integrated maintenance manual bypass switch allows servicing without dropping the load. Supports an optional parallel system (N+X redundancy) for future scalability.
Technical Specifications
- Model: BCN EXTRA POWER MYRIA 40kVA
- UPS Type: True Online Double Conversion
- Design: Transformer-Less Tower UPS
- Rated Capacity: 40,000VA
- Active Power: 36,000W (PF 0.9 Standard)
- Optional Active Power: 40,000W (PF 1.0)
- Phase Configuration: 3:3 / 3:1
- Input Voltage: 138–485VAC (L-L)
- Input Frequency: 50Hz ±10%
- Input Power Factor: 0.95
- Input THDi: <3%
- Output Voltage: 220/230/240VAC (L-N), 380/400/415VAC(L-L)
- Output Voltage Regulation: ±1%
- Output Frequency: 50/60Hz ±0.1%
- Output THDv: <1% Linear / <3% Non-linear
- Output Crest Factor: 3:1
- Overload Capacity: 125% for 15 Minutes / 150% for 1 Minute
- Maximum AC/AC Efficiency: 96%
- ECO Mode: Yes
- Battery Voltage: ±192VDC Default
- Adjustable Battery Voltage: ±144–±240VDC
- Internal Battery: 48–80 × 12V 7Ah
- Charging Current: 15A (1–20A Adjustable)
- Communication: RS485, EPO, Dry Contact
- Optional Communication: RS232, SNMP
- Protection: Overload, Short Circuit, Low Battery, Over Temperature
- Protection Rating: IP20
- Noise Level: <50dB
- Operating Temperature: 0–40°C
- Relative Humidity: 0–95% Non-condensing
- Operating Altitude: 0–2,000m at 100% Load
- Dimensions: 300 × 785 × 1250 mm
- Weight Without Battery: 85 kg
- Standards: TIS.1291 Part 1-2553, Part 2-2553, Part 3-2555, ISO 9001, ISO 14001, OHSAS 18001, CE
