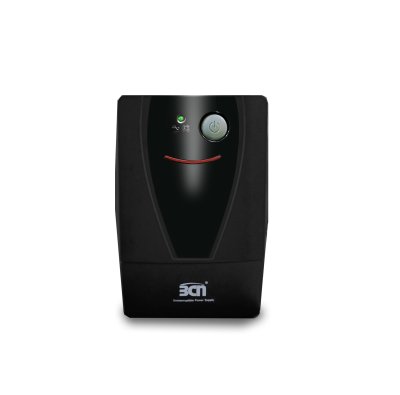

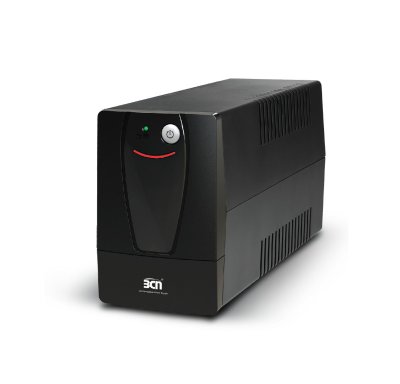

MICRO EASY UPS 800-2000VA

Technical Specifications - Micro Easy Series (650VA-2000VA)

Type: Line Interactive UPS with Stabilizer
Topology: Single-phase Input / Single-phase Output
Capacity Range: 650VA to 2000VA (360W-1200W)

Key Features

• Microprocessor-based digital control

• AVR with Boost and Buck voltage regulation

• Simulated Sine Wave (Battery mode), Sine Wave (AVR mode)

• Wide input voltage and frequency range

• Built-in energy saving mode and cold start function

• Backup time: 15-30 minutes (load dependent)

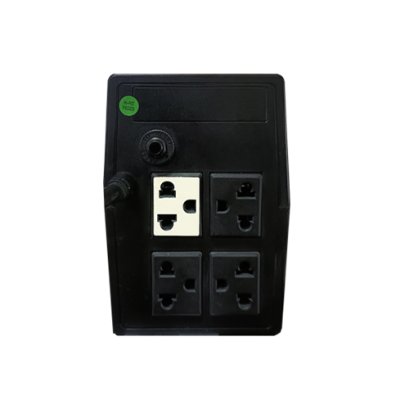

• Universal power outlets with 3+1 backup and bypass ports

• Fast recharge: 90% in 4-6 hours

• Surge, overload, discharge, and short circuit protection

• Auto shutdown on no-load (optional)

• Generator compatible

• Built-in self-diagnostic and noise suppression < 40 dB

• USB or LAN/modem protection port (optional)

• LCD and optional LED display for system status

Input

• Voltage: 220/230/240Vac or 110/120Vac (optional)

• Voltage Range: 220Vac ±25%

• Frequency: 50/60Hz (auto sensing)

Output

• Voltage: 220/230/240Vac or 110/120Vac (optional)

• Voltage Regulation: ±10% (AVR), ±5% (Battery mode)

• Frequency (Battery mode): 50/60Hz ±0.2%

• Transfer Time: Typical 2 ms

• Waveform: Simulated Sine Wave

Battery

• Type: Sealed Lead-Acid, Maintenance-Free

• Models:

  • 650VA: 12V/4.5Ah × 1

  • 850VA, 1000VA: 12V/7Ah × 1 or × 2

  • 1500VA, 2000VA: 12V/9Ah × 2

• Recharge Time: 4-6 hours

Indicators & Alarms

• LCD Display: Input/Output Voltage, Load Level, Battery Status, Overload

• LED Display (optional):

  • Green: AC Mode

  • Yellow: Battery Mode

  • Red: Fault

• Audible Alarms:

  • Battery mode: every 10 sec
  • Low battery: every 1 sec

  • Overload: every 0.5 sec

  • Fault: continuous

Physical

• Dimensions (W×D×H):

  • 650-850VA: 279 × 101 × 142 mm

  • 1000-2000VA: 320 × 130 × 182 mm

• Net Weight: 3.55 to 11.0 kg (model dependent)

Environmental Conditions

• Humidity: 0-90% RH (non-condensing)

• Temperature: 0-40°C

• Noise Level: < 40 dB

Standards & Compliance

• TIS 1291-2553 (1), TIS 1291-2553 (2), TIS 1291-2555 (3)

• EN 62040-1, EN 62040-2:2006, EN 610003-3-2:2014, EN 62040-3

• ISO 9001, ISO 14001, CE Certified

Download Catalog : MICRO_EASY_Catalog
