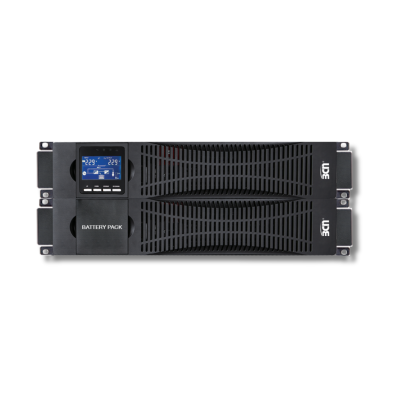

Rack Mount UPS 3000VA (3kVA) – BCN MEMO RT III

• Rack/Tower Convertible installation
• True Online Double Conversion design
• High Frequency Technology: compact & efficient
• Wide Input Range: 110-300Vac
• High Power Factor: 0.99 input / 0.9-1 output (Option)
• Smart Battery Charging for longer lifespan
• ECO Mode for energy saving
• Emergency Power Off (EPO)
• Multiple interfaces: USB, RS232, SNMP/Relay (optional)
• Generator compatible
• Certified: TISI 1291, CE, ISO 9001, ISO 14001, OHSAS 18001

Technical Specifications BCN MEMO RT III 3000VA (3kVA)

Input

• Phase: Single phase + Ground (L, N, G)
• Voltage: 220Vac (Selectable 200/208/220/230/240Vac)
• Voltage Range: 110-300Vac @60% load / 160-300Vac @100% load
• Frequency: 40-70Hz
• Power Factor: 0.99
• Generator Input: Supported


• Capacity: 3000VA (3kVA)
• Power: 2700W or 3000W (Option)
• Power Factor: 0.9 or 1 (Option)
• Voltage Regulation: ±1%
• Frequency: 50/60Hz ±0.1Hz
• Waveform: Pure Sinewave
• Transfer Time: 4 ms Typical

• AC Mode: 92%
• Battery Mode: 90%

• Standard Model: 12V/9Ah × 8, Backup ~8-10 min, Recharge 4h to 90%, Charging 109.4VDC ±1%, 1A/2A
• Long Run Model: External Battery required, Backup depends on capacity, Charging 109.4VDC ±1%, 1A/2A (Max. 12A adjustable via LCD)

Protection & Alarm

• Protection: Short Circuit, Overheat, Low Battery, Overload
• Alarm: LED + Audible
• EPO: Optional

• Standard: USB, RS232
• Optional: SNMP, Relay Card

Physical

• Standard: 440 × 600 × 86.5 mm / ~26 kg
• Long Run: 440 × 435 × 86.5 mm / ~11.3 kg


Recommended Applications

• Servers and Data Centers
• Network & Telecom
• CCTV / NVR / DVR
• Industrial Automation (PLC, SCADA)
• Small Medical Devices
• Office Computers, Digital Studios, POS
