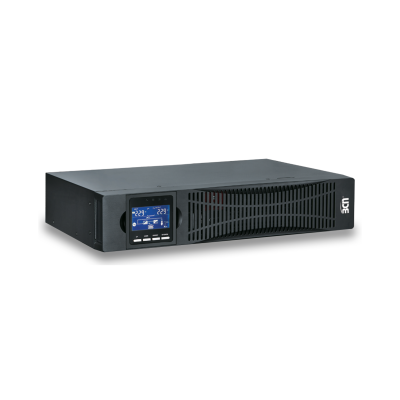

Rack UPS 1kVA (1000VA) | BCN MEMO RT III True Online UPS

What is a Rack UPS?

A Rack UPS (Uninterruptible Power Supply) is a backup power system designed for rack cabinets in server rooms and data centers. Unlike Tower UPS units, Rack UPS saves space, keeps cabling organized, and provides reliable protection for IT and critical systems.

The MEMO RT III is a Rack/Tower Convertible UPS, meaning it can be installed in both rack mount and tower formats.

Key Features BCN MEMO RT III 1000VA (1kVA) Rack UPS

• Rack/Tower Convertible: Flexible installation in rack or tower
• True Online Double Conversion: Clean, stable power for sensitive equipment
• High Frequency Technology: Compact, lightweight, efficient design
• Wide Input Voltage Range: 110-300Vac, suitable for unstable power
• High Power Factor: 0.99 input / 0.9-1 output for maximum usable power
• Smart Battery Charging: Optimized charging to extend battery life
• ECO Mode: Energy-saving operation when conditions allow
• Emergency Power Off (EPO): Safety shutdown function
• Multiple Interfaces: USB, RS232, optional SNMP/Relay card
• Generator Compatible: Works seamlessly with backup generators
• Certified Standards: TISI 1291, CE, ISO 9001, ISO 14001, OHSAS 18001

Technical Specifications MEMO RT III 1000VA (1kVA)

Input

• Phase: Single phase + Ground (L, N, G)
• Voltage: 220Vac (Selectable 200/208/220/230/240Vac)
• Voltage Range: 110-300Vac @60% load / 160-300Vac @100% load
• Frequency: 40-70Hz
• Power Factor: 0.99
• Generator Input: Supported

Output

• Capacity: 1000VA (1kVA)
• Power: 900W or 1000W (Option)
• Power Factor: 0.9 or 1 (Option)
• Voltage Regulation: ±1%
• Frequency: 50/60Hz ±0.1Hz
• Waveform: Pure Sinewave
• Transfer Time: 0 ms

Efficiency

• AC Mode: 92%
• Battery Mode: 88%

Battery

• Type: 12V/9Ah × 2
• Backup Time: ~8 minutes (standard)
• Recharge Time: 4 hours to 90%
• Charging Voltage: 27.4VDC ±1%
• Charging Current: 1A/2A (Max. 12A Long Run model)
• Protection & Alarm
• Short circuit, Overheat, Low battery, Overload
• Audible + LED alarms
• Emergency Power Off (EPO): Optional


Communication

• Standard: USB, RS232
• Optional: SNMP Card, Relay Card

Physical

• Dimensions: 440 × 325 × 86.5 mm
• Net Weight: 11.3 kg

Environment

• Operating Temperature: 0-40°C
• Storage Temperature: -25-55°C
• Humidity: 20-90% RH (non-condensing)
• Altitude: <1500m
• Noise: <50 dBA at 1m

Recommended Applications

• Servers and Data Centers: Prevents data loss and downtime during power outages
• Network and Telecom Systems: Ideal for switches, routers, firewalls, and communication devices
• CCTV and Security Systems: Backup for NVR/DVR and critical surveillance equipment
• Office and Digital Studios: Protects PCs, video editing, and audio production equipment
• Industrial Control Systems (PLC/SCADA): Ensures uninterrupted operation of industrial machinery
• Medical Equipment: Suitable for small medical devices requiring clean and stable power
• POS and Cash Registers: Keeps payment and retail systems running without interruption

Why Buy BCN Rack UPS 1000VA (1kVA) in Thailand from BT CONNECT?

• Complete After-Sales Service: Thai Local engineers and technicians available for installation, maintenance, and emergency support.
• Warranty and Genuine Spare Parts: Standard warranty with optional extensions, plus original factory parts.
• Expert Consultation: Sales engineers guide you in selecting the right UPS for servers, data centers, CCTV, and industrial systems.
• Trusted by Leading Organizations: BT CONNECT supplies UPS solutions for hospitals, factories, government projects, and corporate IT in Thailand
• One-Stop Power Backup Solution: Offering UPS, batteries, stabilizers, and monitoring systems for full business continuity protection.

Download Catalog: BCN Rack UPS Memo RT III 1-3KVA
