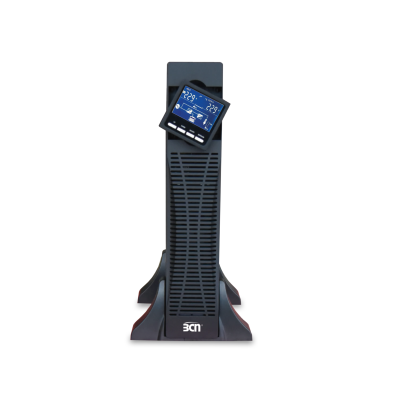

Rack Mount UPS 2000VA (2kVA) – BCN MEMO RT III

• Rack/Tower Convertible design
• True Online Double Conversion system
• High Frequency Technology for compact design
• Wide Input Voltage Range: 110-300Vac
• High Power Factor: 0.99 input / 0.9-1 output
• Smart Battery Charging for extended lifespan
• ECO Mode for energy saving
• Emergency Power Off (EPO)
• Interfaces: USB, RS232, optional SNMP/Relay Card
• Generator compatible
• Certified: TISI 1291, ISO 9001, ISO 14001, CE

Specifications MEMO RT III 2000VA (2kVA)

Input

• Phase: Single phase + Ground (L, N, G)
• Voltage: 220Vac (Selectable 200/208/220/230/240Vac)
• Voltage Range: 110-300Vac @60% load / 160-300Vac @100% load
• Frequency: 40-70Hz
• Power Factor: 0.99
• Generator Input: Supported

Output

• Capacity: 2000VA (2kVA)
• Power: 1800W or 2000W (Option)
• Power Factor: 0.9 or 1 (Option)
• Voltage Regulation: ±1%
• Frequency: 50/60Hz ±0.1Hz
• Waveform: Pure Sinewave
• Transfer Time: 4 ms (Typical)


Efficiency

• AC Mode: 92%
• Battery Mode: 88%

Battery

• Standard Model: 12V/9Ah × 6, Backup time ~8-10 minutes (depending on load), Recharge time 4 hours to 90%, Charging voltage 82.1VDC ±1%, Charging current 1A/2A
• Long Run Model: External battery required, Backup time depends on external battery capacity, Charging voltage 41.1VDC ±1%, Charging current 1A/2A (Max. 12A adjustable via LCD)

• Protection: Short circuit, Overheat, Low battery, Overload
• Alarm: Audible and LED indicators
• Emergency Power Off (EPO): Optional

Communication

• Standard Ports: USB, RS232
• Optional: SNMP Card, Relay Card

• Standard Model: 440 × 460 × 86.5 mm / 26.4 kg
• Long Run Model: 440 × 435 × 86.5 mm / 19.1 kg

Recommended Applications

• Servers and Data Centers
• Network & Telecom (Switches, Routers, Firewalls)
• CCTV & Security Systems (NVR, DVR)
• Industrial Control (PLC, SCADA)
• Small Medical Devices
• Office Computers and Digital Studios
• POS and Retail Systems



Why Buy Rack UPS 2000VA (2kVA) from BT CONNECT?

• Local After-Sales Support: Professional engineers and technicians for installation, maintenance, and emergency services
• Genuine Spare Parts & Flexible Warranty: Original factory parts with optional extended warranty packages
• Expert Consultation: Sales engineers help select the right UPS for servers, data centers, CCTV, networks, and industrial systems
• Trusted by Leading Organizations: Hospitals, factories, government agencies, and corporations rely on BT CONNECT UPS solutions
• Complete Power Backup Solutions: UPS, batteries, stabilizers, and monitoring systems all from one trusted source
