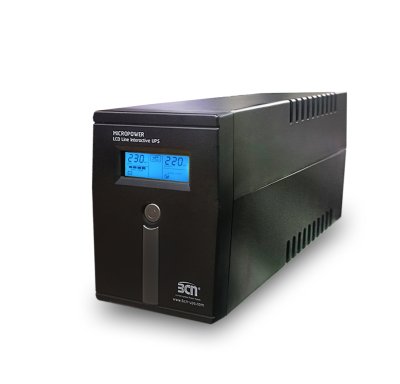

MICRO ECO UPS 800-2000VA

Technical Specifications - Micro ECO Series (600VA-2000VA)
Type: Line Interactive UPS with Stabilizer
Topology: Single-phase Input / Single-phase Output
Capacity Range: 600VA to 2000VA

Key Features

• Microprocessor-based control for precision operation

• AVR with Boost and Buck stabilization

• Simulated Sine Wave output in battery mode

• LCD display for real-time system status

• Cold Start and Auto-Restart functions

• No-Load Shutdown (optional)

• Battery health check (Replace Battery indicator)

• Surge, Overload, and Short Circuit Protection

• Compatible with Generator use

• Fast Charging: up to 90% in 6-8 hours

• RJ11/RJ45 communication protection (optional)

• Smart USB communication port (optional)


Input

• Voltage: 110/120Vac or 220/230/240Vac (optional)

• Voltage Range: 220Vac ±25% or -35%/+25% (optional)

• Frequency: 50/60Hz (auto-sensing)

Output

• Voltage Regulation:

  • AVR Mode: ±10%

  • Battery Mode: ±5%

• Frequency (Battery Mode): 50/60Hz ±0.1%

• Transfer Time: ≤ 2 ms

• Waveform (Battery Mode): Simulated Sine Wave

Battery

• Type: Sealed Lead-Acid, Maintenance-Free

• Recharge Time: 6-8 hours to 90% capacity

Indicators & Alarms

• LCD Panel: Input/Output voltage, battery/load status, fault, etc.

• LED Indicators:

  • Green: AC mode

  • Amber: Battery mode

  • Red: Fault

• Audible Alarms:

  • Battery Mode: every 10 seconds

  • Low Battery: every 1 second

  • Overload: every 0.5 seconds

  • Battery Replacement: every 2 seconds

  • Fault: continuous sound

Physical

• Dimensions (D×W×H): 298 × 101 × 142 mm

• Net Weight: 3.55 - 4.9 kg (model dependent)

Environment

• Operating Temperature: 0-40°C
• Humidity: 0-90% RH (non-condensing)
• Noise Level: < 40 dB

Compliance

• TIS 1291-2553 (1), TIS 1291-2553 (2), TIS 1291-2555 (3)
• ISO 9001, ISO 14001, OHSAS 18001, CE Certified



Download Catalog : Micro ECO 1000VA Catalog
