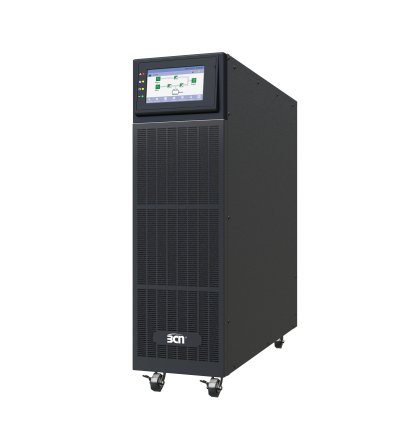

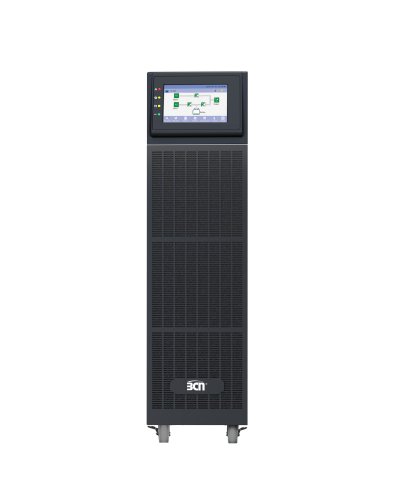

DATA POWER 40-200KVA
Short Description
DATA POWER UPS 40–200KVA features True Online with 3-Level Inverter, IGBT PFC, up to 98% efficiency, PF 1.0, wide input 138–485V. Modular design, LBS, shared battery, scalable up to 6 units. Ideal for heavy loads.
Brands: BCN
Wishlist
Compare
Product Description
Key Technical Features - DATA POWER UPS (40-200KVA)
- Power Ratings:
- 40KVA (36-40KW), 50KVA (45-50KW), 60KVA (54-60KW), 80KVA (72-80KW)
- 100KVA (90-100KW), 120KVA (108-120KW), 150KVA (135-150KW), 160KVA (144-160KW)
- 180KVA (162-180KW), 200KVA (180-200KW)
- 40KVA (36-40KW), 50KVA (45-50KW), 60KVA (54-60KW), 80KVA (72-80KW)
- True Online Double Conversion: Delivers stable, clean power with full protection against surges,
- sags, and outages
- 3-Level Inverter with IGBT PFC: Industry-leading energy efficiency up to 98%
- Power Factor 1.0 (Input PF up to 0.999): Supports full load capacity with minimal energy loss
- Wide Input Voltage Range: 138-485V AC - suitable for unstable power environments
- Parallel Scalability: Supports up to 6 units (N+X redundancy) for increased reliability
- 100% Unbalanced Load Support: Handles non-uniform power usage across phases
- Dual & Separate Input Configuration: Flexible system integration for critical loads
- Modular Design: Simplifies maintenance and minimizes downtime
- LBS Function (Load Bus Synchronization): Synchronizes two independent UPS systems
- Comprehensive Monitoring & Control: RS232, RS485, Parallel, optional SNMP & Relay Card
- 7" Color LCD Display: Real-time status and intuitive user interface
- Complete Protection System: Against short circuit, overload, overheating, and battery faults
- Certified: TIS 1291-2553 (1), TIS 1291-2553 (2), TIS 1291-2555 (3), ISO 9001, ISO 14001, OHSAS 18001, CE
Recommended Applications:
- Data centers and mission-critical IT systems
- Heavy industrial operations and manufacturing
- Network infrastructure and telecommunications
- Large enterprises and facilities with high power demand
Download Catalog : DATA POWER 40-200KVA
