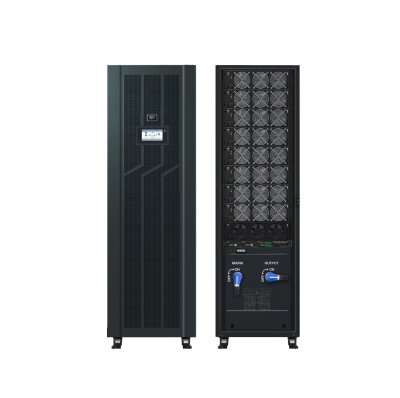

Modular Power 40-1000KVA

Key Technical Features - MODULAR POWER UPS (40-1000KVA)

• Modular Architecture: Supports hot-swappable power modules, bypass modules, and monitoring units

• True Online Double Conversion with DSP Control: Ensures reliable and clean power delivery
  3-Level Inverter & IGBT PFC: Up to 96% efficiency with minimal energy loss

• High Power Factor 1.0 (Input PF up to 0.999): Full-capacity power delivery

• Wide Input Voltage Range: 138-485V AC, suitable for unstable grid conditions

• 100% Unbalanced Load Support: Handles inductive and capacitive loads effectively
  Parallel Redundancy (N+X): Scalable up to 6 units for enhanced system reliability

• Common Battery Bank Supported: Configurable with 30-50 batteries

• LBS & Loop Signal Control: Ensures seamless synchronization and fault isolation

• ECO Mode Efficiency: Up to 96% for energy-saving operations

• Touchscreen LCD: 7" / 10.4" (optional) for real-time monitoring and control

• Advanced Protection System: Against overloads, short circuits, battery issues, and overheating

• High Power Density Design: Compact footprint for optimized space usage

• Certified:  TIS 1291-2553 (1), TIS 1291-2553 (2), TIS 1291-2555 (3), ISO 9001, ISO 14001, OHSAS 18001, CE

• Power Modules: 40KVA, 50KVA (3U rack-mounted)

• UPS Capacity Range: 40KVA to 1000KVA

• Input:

  • Voltage: 380/400/415V (3Ph+N+PE)

  • Range: 138-305V @ 40% load, 305-485V @ 100% load

  • Frequency: 40-70Hz

  • Power Factor: ≥0.99

  • THDi: ≤3% @ 100% linear load

• Output:

  • Voltage: 380/400/415V ±1% (sync with input)

  • Power Factor: 1.0

  • THD: ≤2% (linear), ≤4% (non-linear)

  • Crest Factor: 3:1

  • Overload Capacity:

    • 110% (60 min), 125% (10 min), 150% (1 min), >150% shutdown

• Battery:

  • Voltage: Configurable (±180V to ±300V, 30-50 batteries)

  • Max Charging Current: Up to 20A (model dependent)

  • Advanced Battery Management included

Monitoring & Control

• Communication Ports: RS232, RS485, MODBUS, Dry Contact, SNMP (optional), Battery Temp Sensor (optional)

• Display Interface: 7" or 10.4" LCD touchscreen (optional)

• Environmental Conditions

• Operating Temperature: 0-40°C

• Humidity: 0-95% RH (non-condensing)

• Noise Level: <68-73dB (based on capacity)

Recommended Applications

• Data Centers: For uninterrupted power in critical server and storage systems

• Industrial Facilities: Ensures stable backup for production equipment and control systems

• Large Enterprises: Scalable, high-efficiency power infrastructure for mission-critical operations
