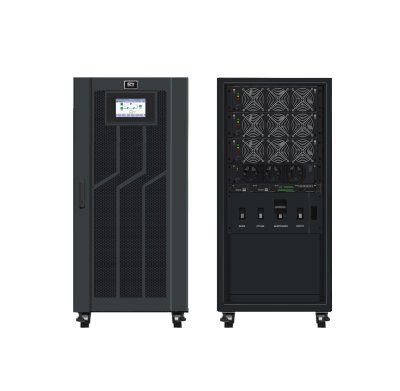

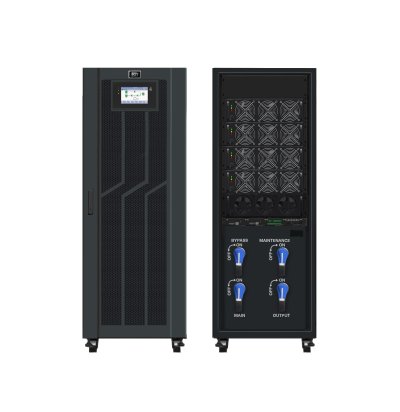

Modular Power 10-300KVA

Key Technical Features - MODULAR POWER UPS (10-300KVA)

• Modular Design: Separate hot-swappable power, bypass, and monitoring modules

• True Online Double Conversion with DSP Control: Provides stable, isolated power with full protection

• 3-Level Inverter & IGBT PFC: High efficiency up to 95.8%, reduced energy loss

• Power Factor 1.0 (Input PF up to 0.999): Delivers full power capacity efficiently

• Wide Input Voltage Range (138-485V): Operates in unstable power environments

• 100% Unbalanced Load Support: Handles inductive and capacitive loads seamlessly

• N+X Redundancy & Parallel Scalability: Supports up to 6 UPS units for system stability

• Common Battery Bank Compatible: Flexible configuration with 30-50 batteries

• LBS Function & Loop Signal Control: Enhances fault isolation and system safety

• ECO Mode Efficiency up to 95.8%: Saves energy during low-load operation

• Touchscreen Display: 7" or 10.4" (optional) real-time system status and control

• Comprehensive Protection: Against overload, short circuit, high temp, battery faults

• Smart Battery Management: Extends battery life and optimizes charge cycles

• Certified: TIS 1291-2553 (1), TIS 1291-2553 (2), TIS 1291-2555 (3), ISO 9001, ISO 14001, OHSAS 18001, CE

Technical Specifications:

• Power Modules: 10KVA, 15KVA, 20KVA, 25KVA, 30KVA (2U rack-mounted)

• Cabinet Capacity: Scalable from 10KVA to 300KVA

• Input Voltage: 380/400/415V (3Ph+N+PE)

  • 138-305V (at 40% load), 305-485V (at 100% load)

  • Input Frequency: 40-70Hz

  • Input PF: ≥0.99 | THDi: ≤3% (at full linear load)

• Output Voltage: 380/400/415V ±1% (sync with input)

  • Output PF: 1.0 | THD: ≤2% (linear), ≤4% (non-linear)

  • Crest Factor: 3:1

  • Overload Capacity: 110% (60 min), 125% (10 min), 150% (1 min), >150% instant shutdown

• Battery:

  • DC Voltage: Configurable for 30-50 batteries (±180V to ±300V)

  • Max Charging Current: Up to 18A (model dependent)
  • Advanced Battery Management included

• Interfaces: RS232, RS485, MODBUS, Dry Contact, SNMP (optional), Battery Temp Sensor (optional)

• Display: 7" or 10.4" LCD Touchscreen (optional)

Environmental Conditions:

• Operating Temp: 0-40°C | Humidity: 0-95% (non-condensing)

• Noise Level: <58-68 dB (depending on UPS size)

Recommended Applications:

• Data Centers: High-reliability power for servers and critical infrastructure

• Industrial Plants: Power backup for production lines and sensitive equipment

• Large Enterprises: Scalable and efficient UPS systems for business continuity



Download Catalog : modular power catalog
