Rack UPS 10kVA – BCN MEMO PLUS RT III
Short Description
The BCN MEMO PLUS RT III 10kVA Rack UPS is a True Online Double Conversion UPS designed for Servers, Data Centers, CCTV, Network, and Industrial equipment. It supports both Rack and Tower installation, compatible with external battery packs for 4-hour / 6-hour / 8-hour backup time as required.

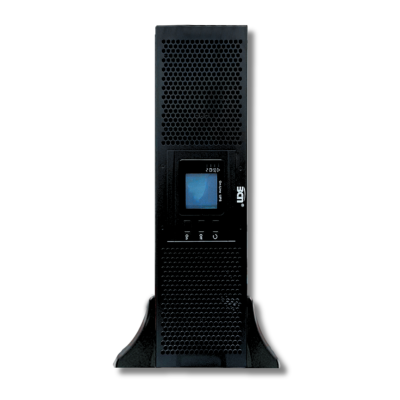

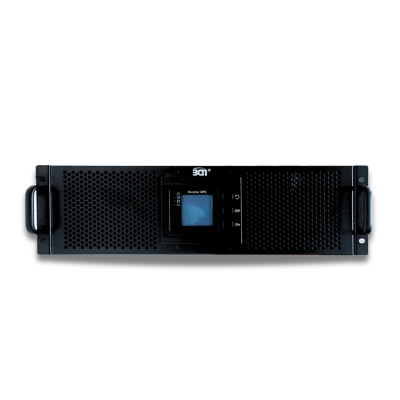

- Convertible design: supports both Rack and Tower installation (3U height)
- True Online Double Conversion with DSP control ensures the cleanest, most stable power supply
- Wide input voltage range 208-478Vac stable operation even under fluctuating power conditions
- Input frequency range 40-70Hz (Auto-sensing) compatible with generators
- Input Power Factor 0.99 with PFC and THDi <3%, minimizing grid disturbance
- Output Power Factor 0.9 (PF 1.0 available as an option)
- ECO Mode for automatic energy-saving at low load
- Dual Input Source supports two separate AC inputs for redundancy
- Cold Start capability can start directly from battery power during outages
- Rotatable Mimic LCD display showing clear system status and parameters
- Certified: TISI 1291, CE, ISO 9001, ISO 14001, OHSAS 18001
Technical Specifications (10kVA)
Input- Phase: 3-Phase In / 1-Phase Out (3:1) or 1:1 (depending on model)
- Voltage: 380/400/415Vac or 220/230/240Vac
- Voltage Range: 208-478Vac
- Frequency: 40-70Hz
- Power Factor: 0.99
- THDi: <3%
- Capacity: 10000VA (10kVA)
- Active Power: 9000W (PF 0.9) or 10000W (PF 1.0 Option)
- Waveform: Pure Sinewave
- Voltage Regulation: ±1%
- Frequency: 50/60Hz ±0.1Hz
- Crest Factor: 3:1
- THDv: 2% (Linear Load), 5% (Non-linear Load)
- Transfer Time: 0 ms (no interruption)
- Battery Voltage: ±120Vdc (depends on configuration)
- Battery Set: configurable by required runtime
- Backup Time: approx. 10 minutes at full load (extendable to 4 / 6 / 8 hours with external battery packs)
- Recharge Time: up to 90% within 68 hours (depends on charger and capacity)
- AC Mode: up to 93.5%
- Battery Mode: up to 93%
- Protection: Short Circuit / Overheat / Battery Low / Overload
- Alarms: LED, Audible Alarm, LCD Display
- RS232, USB, SNMP Slot (optional), Relay Card (optional), Parallel Card (optional), EPO
- Dimension: 443 × 580 × 131 mm (3U)
- Net Weight: Approx. 28 kg
Recommended Applications
- Data Centers and Server Rooms
- Network and Telecom Systems
- Industrial Automation Lines and Control Panels
- Medical Equipment requiring stable and clean power*
- Security and CCTV Systems in control centers
Why Choose Rack UPS 10kVA from BT CONNECT
- Many organizations in Thailand trust BCN Rack UPS because it meets both Thai and international standards, featuring True OnlineDouble Conversion technology for stable performance across Server, Data Center, CCTV, and Network environments.
- Comprehensive After-Sales Support - Our Thai engineering team provides full consultation, site inspection, installation, maintenance, and repair services.
- Genuine Parts & Flexible Warranty - We stock genuine batteries and spare parts locally, with extended warranty options for corporate or project-based clients.
- Trusted by Leading Organizations - Used by factories, hospitals, offices, and government institutions across Thailand.
- Complete Power Solution - From UPS, Battery, Stabilizer, to Monitoring Systems all in one place with BT CONNECT
FAQ Rack UPS
1. Which Rack UPS brand is recommended? - We recommend BCN Rack UPS from BT CONNECT, featuring True Online Double Conversion, high stability, and professional after-sales service in Thailand.
2. Whats the difference between Rack and Tower UPS? - Rack UPS is designed for cabinet installation (Server Room / Data Center). Tower UPS is for floor-standing applications (Office use). If you need flexibility, choose Rack/Tower Convertible models like BCN MEMO RT III.
3. How long can a 10kVA UPS provide backup power -Standard runtime is about 10 minutes at full load, extendable to 4 / 6 / 8 hours with external battery packs.
4. Whats the difference between Online and Line-Interactive UPS? - Online UPS (True Double Conversion) delivers the most stable power output, protecting sensitive systems from surges, sags, and blackouts ideal for servers and mission-critical loads. Line-Interactive UPS suits general office use but is less stable than Online type.
5. Where to buy Rack UPS in Thailand? - Purchase from BT CONNECT, the official distributor of BCN UPS in Thailand.
All units are genuine, meet global standards, and include full after-sales support from professional engineers.
Download Catalog: BCN Rack UPS Memo RT III 6–10kVA
